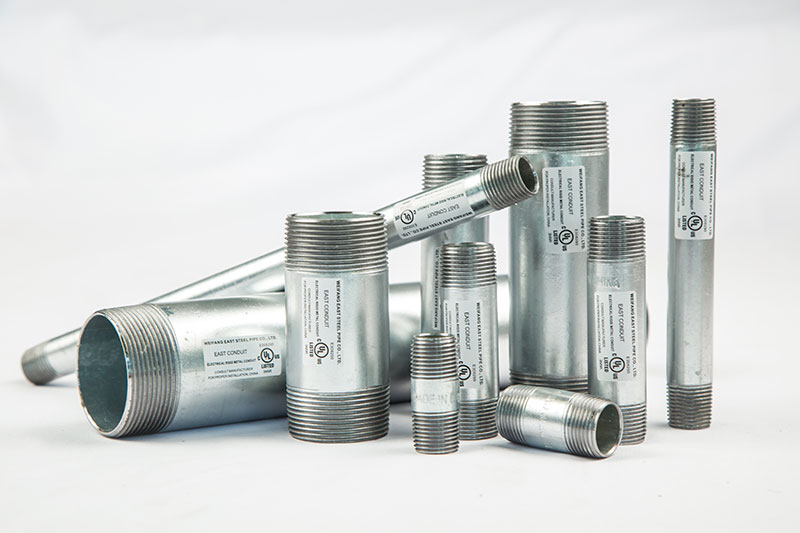

Aluminum Rigid Conduit Nipples

Description

Rigid conduit Nipple is manufactured from high-strength rigid aluminum conduit shell in according with the latest specifications and standards of ANSI C80.5(UL6A).
Rigid aluminum conduit Nipples are produced in normal trade sizes from ½“ to 6”, the lengths of the nipples including close nipples,1-1/2”, 2”, 2-1/2”,3”,3-1/2”,4”,5”,6”,8”,10”,12” or according customer’s request .
The nipples are used to connect the rigid aluminum conduit to extend the length of the conduit.

Dimension and Packing Chart

PIPE SIZE (IN)	CLOSE LENGTH (IN)	CLOSE		1-1/2″		2″		2-1/2″		3″		3-1/2″
PIPE SIZE (IN)	CLOSE LENGTH (IN)	Std Ctn Qty	Lbs Per 100	Std Ctn Qty	Lbs Per 100	Std Ctn Qty	Lbs Per 100	Std Ctn Qty	Lbs Per 100	Std Ctn Qty	Lbs Per 100	Std Ctn Qty	Lbs Per 100
1/2″	1-1/8″	600	6	600	8	600	12	400	15	400	19	300	22
3/4″	1-3/8″	400	9	400	9	300	14	300	19	200	24	200	28
1″	1-1/2″	300	16			200	22	200	28	150	36	150	43
1-1/4″	1-5/8″	150	22			150	28	150	37	100	47	100	55
1-1/2″	1-3/4″	100	28			75	34	75	44	50	56	50	68
2″	2″	75	44					50	59	50	72	40	88
2-1/2″	2-1/2″	40	84							40	100	30	120
3″	2-5/8″	30	118							20	130	15	157
3-1/2″	2-3/4″	20	160
4″	2-7/8″	20	180
5″	3″	5	240
6″	3-1/8″	5	350

Length	4″		5″		6″		8″		10″		12″
Trade Size (in)	Std Ctn Qty	Lbs Per 100	Std Ctn Qty	Lbs Per 100	Std Ctn Qty	Lbs Per 100	Std Ctn Qty	Lbs Per 100	Std Ctn Qty	Lbs Per 100	Std Ctn Qty	Lbs Per 100
1/2″	300	26	200	33	200	40	100	54	75	68	75	82
3/4″	150	34	100	43	100	52	75	73	50	89	50	109
1″	100	49	100	64	75	78	50	109	50	138	50	166
1-1/4″	100	66	75	84	50	100	50	136	40	176	30	216
1-1/2″	50	80	50	103	50	122	40	170	30	216	20	260
2″	40	103	40	132	30	160	20	220	20	285	15	335
2-1/2″	30	150	20	197	20	240	10	329	10	422	10	505
3″	15	200	15	260	10	300	7	411	5	528	5	630
3-1/2″	10	240	8	320	8	373	7	510	4	655	4	785
4″	10	285	8	380	8	440	4	600	4	775	4	925
5″			5	480	5	600	4	825	3	1055	3	1260
6″			5	660	5	820	4	1125	3	1440	3	1720
